HOWO-N
The positioning of the HOWO-N Dump Truck with ultra-high-cost performance will bring you more comfort, reliability and income than you expect.

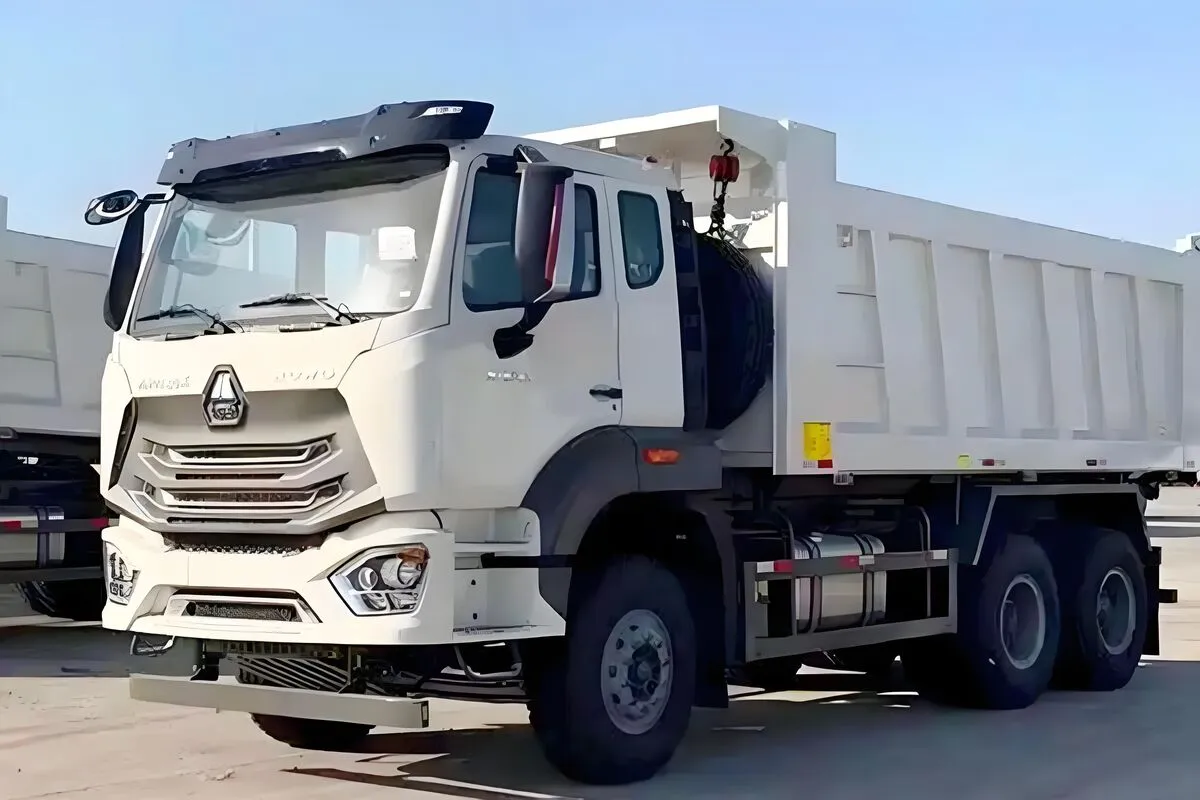

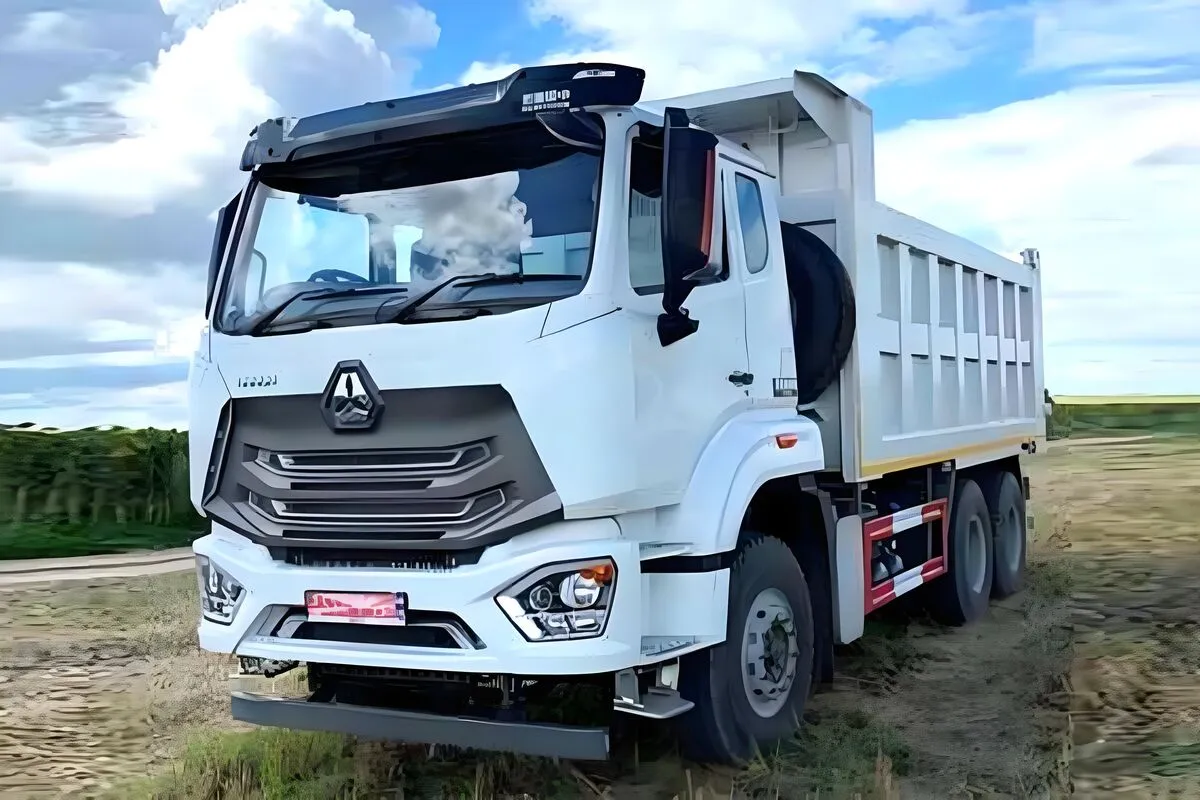

HOWO N 6×4 Dump Truck
| Category | Specification |
|---|---|
| Weight Parameter | Curb Mass: 12,370 kg |
| Full Loaded Mass: 25,000 kg | |
| Dimension Parameter | External Size (L×W×H): 8450×2496×3170 mm |
| Wheelbase: 3820 + 1350 mm | |
| Performance Parameter | Max Speed: 90 km/h |
| Economic Speed: 85 km/h | |
| Max Grade Ability: 34% | |
| Engine | Horsepower: 371 |
| Type: Water-cooled, turbo-charged & inter-cooled, direct injection | |
| Rear Axle | Model: HC16 |
| Ratio: 4.8 | |
| Carriage | Internal Dimensions: 5800×2300×1500 mm |
| Volume: 20 m³ | |
| Thickness: Floor 8 mm / Side 4 mm | |
| Fuel Tank | Capacity: 300 L |
| Tire | 12.00R20 / 295 / 80R22.5 |

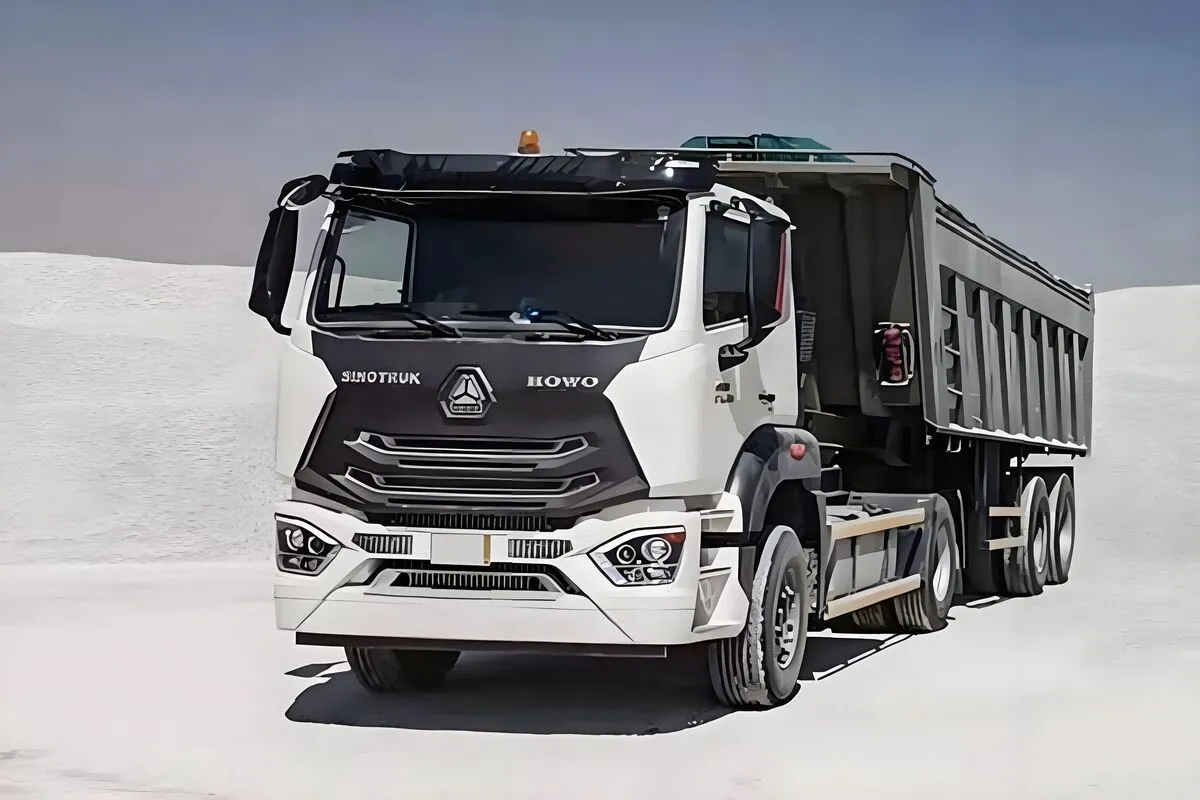

HOWO N 8×4 Dump Truck
| Category | Specification |
|---|---|
| Weight Parameter | Curb Mass: 15,830 kg |
| Full Loaded Mass: 31,000 kg | |
| Dimension Parameter | External Size (L×W×H): 10745×2496×3668 mm |
| Wheelbase: 1800 + 3000 + 1350 mm | |
| Performance Parameter | Max Speed: 90 km/h |
| Economic Speed: 80 km/h | |
| Max Grade Ability: 34% | |
| Engine | Horsepower: 390 |
| Type: Water-cooled, turbo-charged & inter-cooled, direct injection | |
| Rear Axle | Type: MCX16 |
| Ratio: 5.72 | |
| Carriage | Internal Dimensions: 6200×2300×1500 mm |
| Steel Thickness: 8 mm | |
| Fuel Tank | Capacity: 300 L |
| Tire | 12.00R20 / 295 / 80R22.5 |
