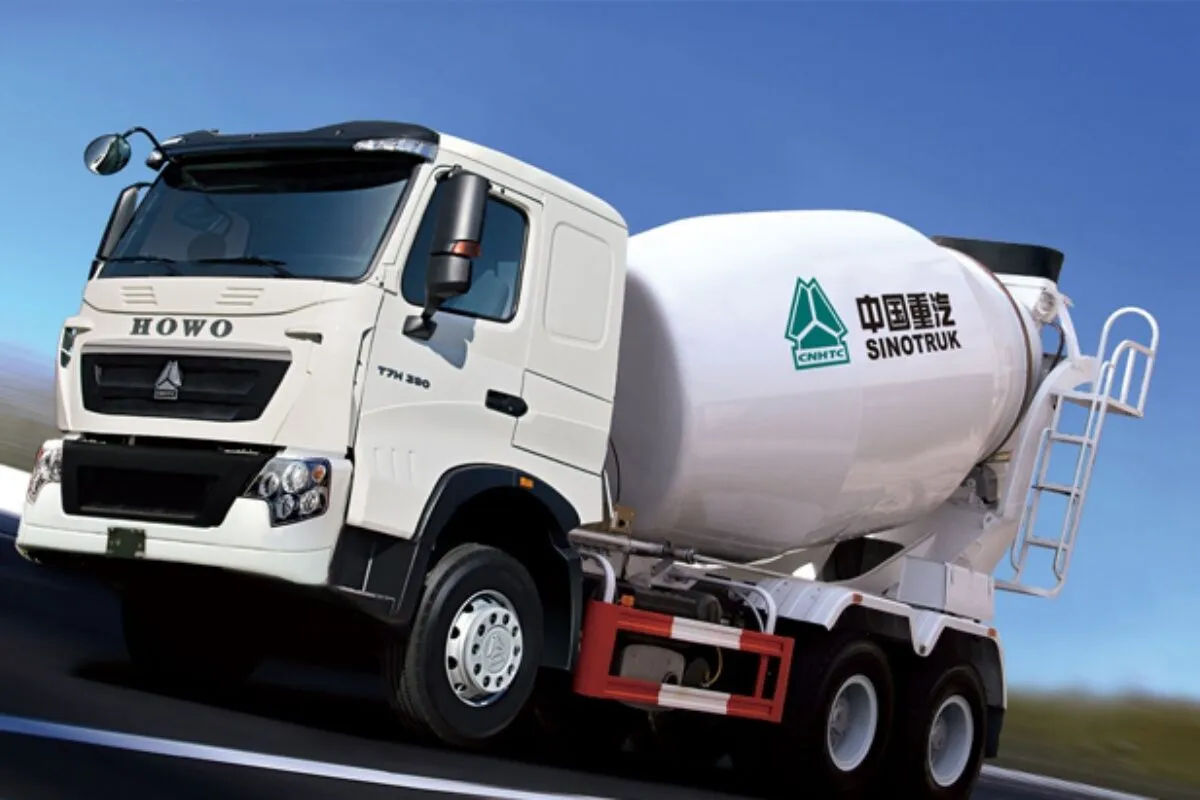

HOWO-T7H
The HOWO T7H Mixer delivers exceptional performance with its fuel efficiency, comfortable cab, spacious storage, increased speed, and higher payload capacity – all seamlessly integrated to meet your every need.
| Category | Item | Details |
|---|---|---|
| Cabin | Driving type | 6×4 LHD/RHD |
| Cab specification | T7H – W – Wide – body low – floor Lengthen Cab Flat roof Option:Upgrade Edition; single bunk, safety belts, A/C, 70° hydraulically tillable to the front as attached photo for ref. | |
| Dimensions | Overall dimensions (L×W×H)mm | 10005×2496×3980 |
| Wheel base (mm) | 4025 + 1350 | |
| Weight in KGS | Tare Weight | 14170 |
| Loading Capacity | 12070 | |
| Front axles loading capacity | 1×9000 | |
| Rear axles loading capacity | 2×16000 | |
| Performance | Maximum driving speed (km/h) | 80 |
| Engine | Brand | SINOTRUK |
| Type | 6 – cylinder in line, 4 – stroke, water – cooled, supercharging intermediate cooler, high pressure common rail | |
| Horse Power (HP)/(KPM) | 390HP | |
| Emission standard | Euro III | |
| Transmission | HW19710 or HW23710 transmission, 10 forward and 2 reverse | |
| Steering Gear | ZF power steering, modol ZF8098, hydraulic steering with power assistance | |
| Fuel tank (L) | 400 | |
| Tire | 12.00 – 20, Optional 12.00R20, 11.00 – 20, 11.00R20 | |
| Mixer Body | Volume | 12 CBM |
| Body Thickness | High tensile strength steel 6mm | |
| Hydraulics | German or Italy made imported (repeated three times in the original table) |

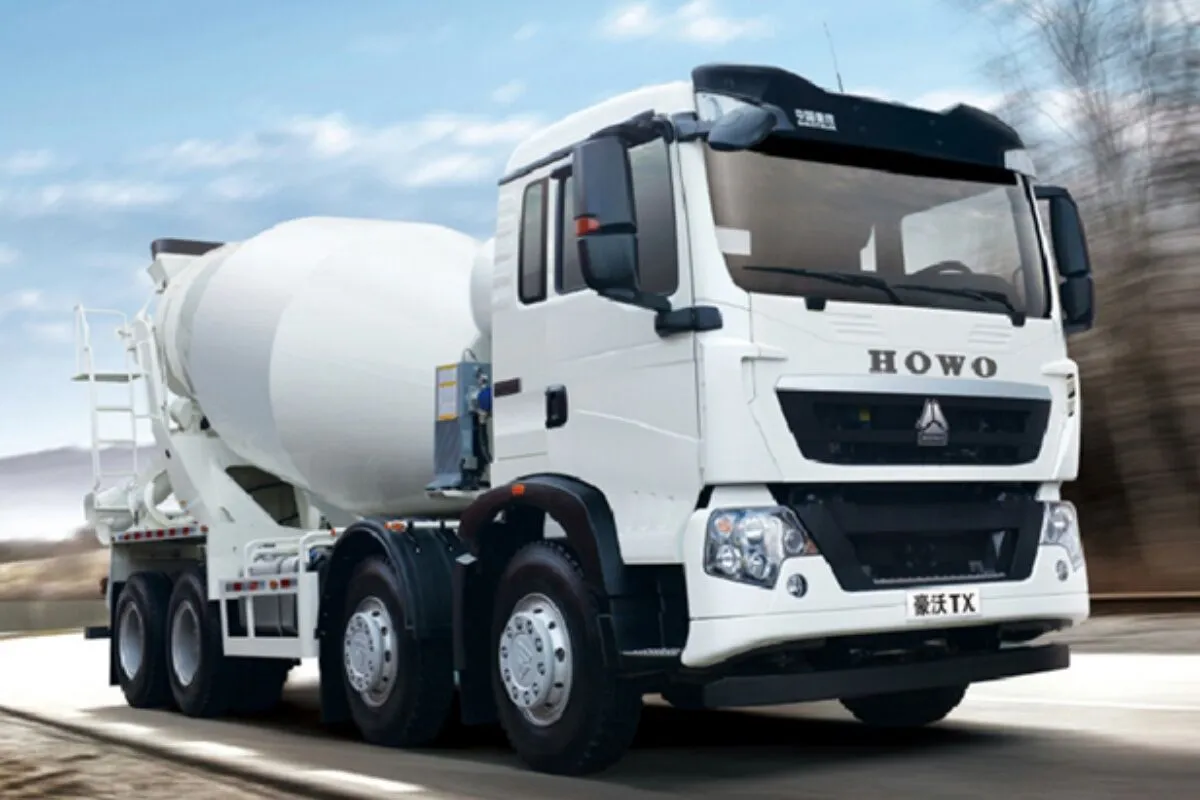

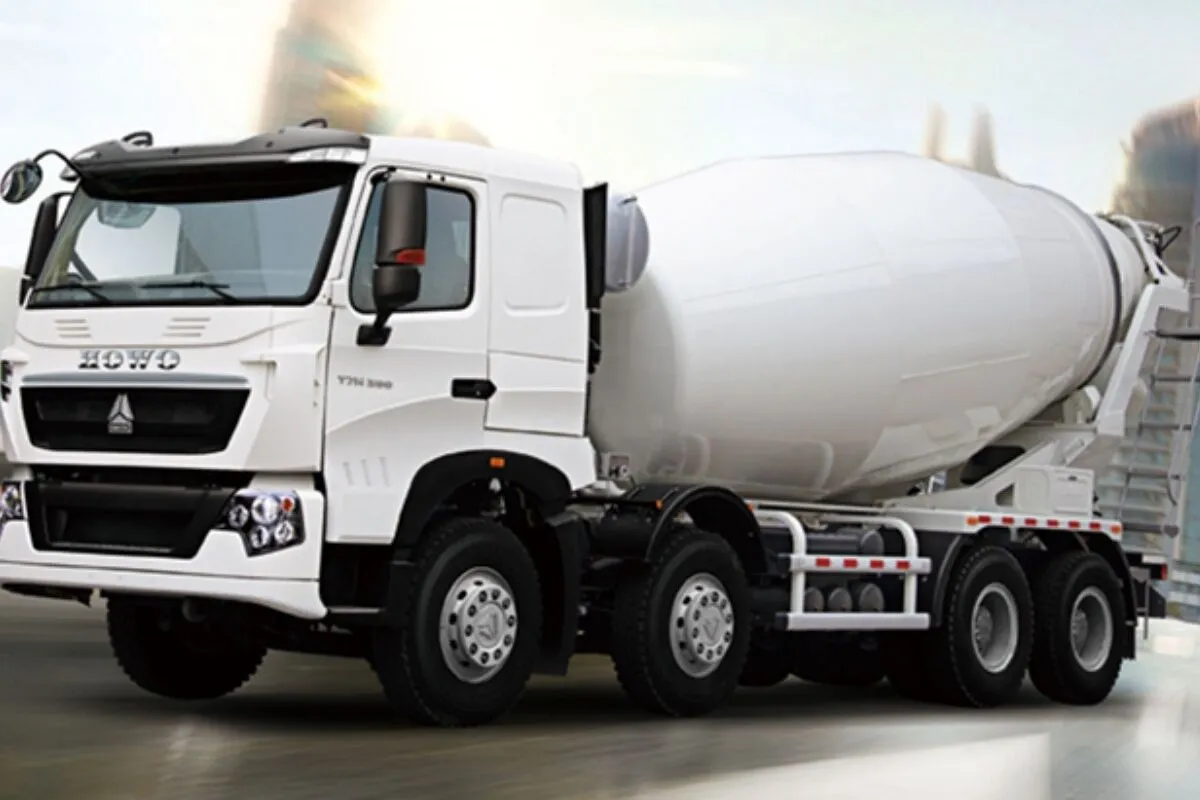

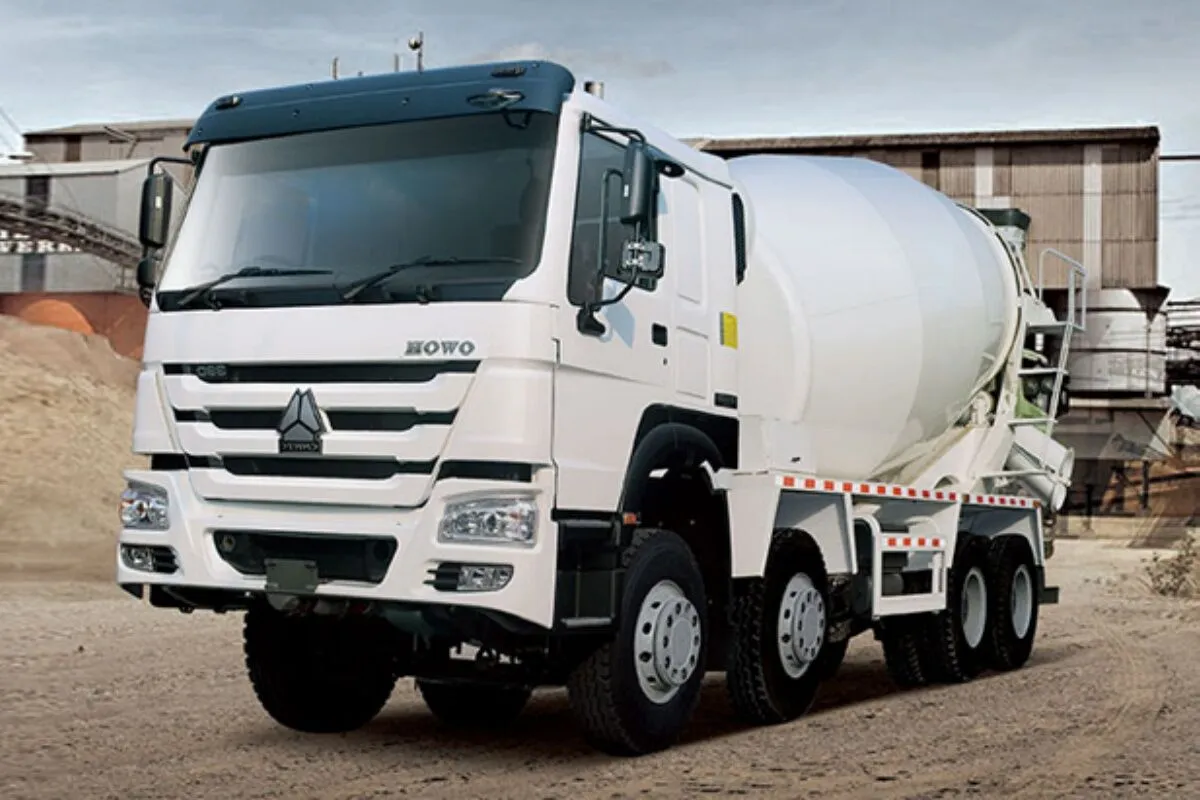

| Vehicle type | Mixer |
|---|---|
| Drive type | 8×4 |
| Cab | TX – M(525MM single bunk),TX – F(749MM single bunk) |
| Engine – Emission standard | Euro Ⅱ – Euro Ⅴ |
| Engine – Power | 266 – 440PS |
| Transmission | 9F,10F,12F |
| Front axle | 9.5T + 9.5T |
| Rear axle | 16T + 16T |
| Tyre | 12.00R20,12R22.5,315/80R22.5, 13R22.5 etc. |
| Volume of body | 12 – 16CBM |
