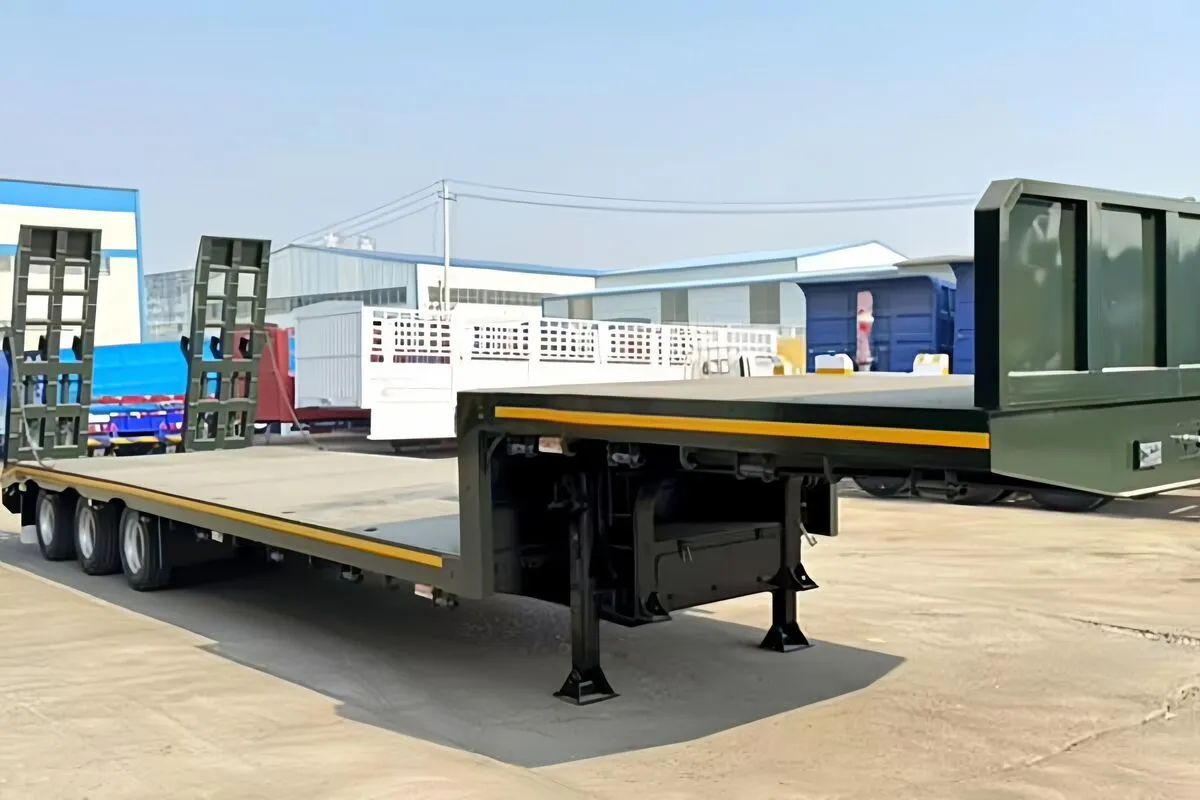

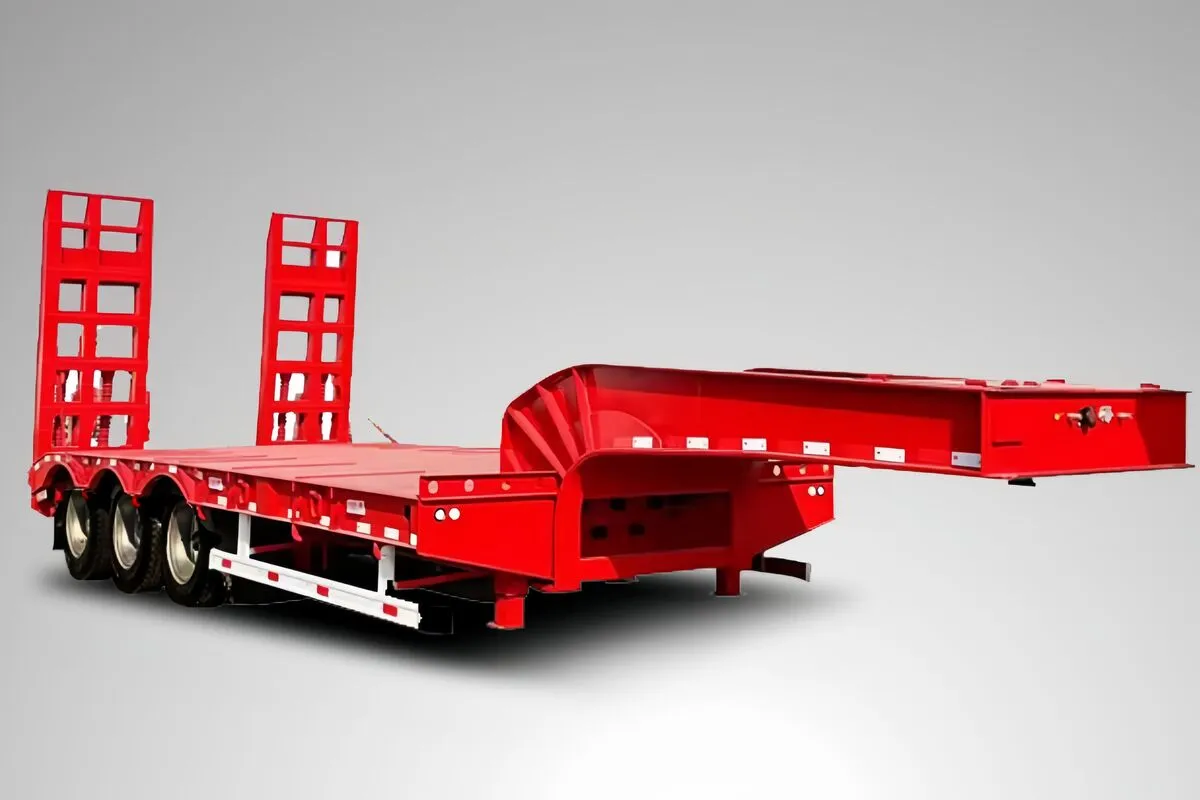

Low Bed Semi Trailer Truck
Low Bed Semi Trailer Truck - Image 2
Low Bed Semi Trailer Truck - Image 3

Low Bed Semi Trailer Truck

Sinotruk Low Bed Trailer Truck with a standard load capacity of 80 tons, allowing an overload of 25%. It is suitable for the transportation of large machinery, large ores, but also heavy goods such as steel coils and prefabricated steel frames.

Sinotruk Low Bed Trailer Truck offers several advantages for transporting. The low bed design of the trailer allows for easy loading and unloading of tall and oversized equipment, such as construction machinery and vehicles, by minimizing the incline angle of the ramp.
The tri – axle configuration of low bed trailer 70tons provides more flexibility in terms of load distribution, making it suitable for a wide range of heavy and oversized cargo.
Item Details
Overall Dimension(mm) 13000×3000×1700mm
Working Deck Dimension(mm) 9000×3000×1350mm
Platform thickness(mm) 4mm
Main Beam “H”main beam design, 345B carbon steel,
the height of the beam is 500mm,
upper plate is 16mm, down plate is 18mm, middle plate is 10mm.
Wheelbase 7,650mm + 1,310mm + 1,310mm
Plyload 60,000kg
Axle 3×13Ton ZYbrand optional FUWA brand
one hundred fifty thousand Kilometers no need maintenance
Tire 1100R20, 12pcs Taitong brand
Rim 8.0×22.5 steel disc wheel, 10 holes ISO, 12pcs
Suspension system Common Mechanical Suspension
Steel Spring 10/10/10 leaf spring with 90mm(W)×13mm(thickness)
Brake air chamber 6 units T30/30 spring brake chambers
Emergency relay valve Wabco relay valve
Traction/King Pin 2″and 3.5″removable Kingpin
Landing Gear 28ton
Item Details
Tool box 1pcs, One crank and one shaft head wrench
Ramp Heavy duty trailer ramp
Spare wheel carriers 2pcs
bumper Rear bumper
Electrical system 1. Voltage: 24V 2. Receptacle: 7 ways(7 wire harness)
Tail lamp with turn signal, brake light&reflector, side lamp etc.
One set 6 – core electric cable protected by PVC conduit on main frame
